This structural limitation makes conventional nozzles unsuitable for industries that require multi-model, small-batch, and high-performance processing. As laser cladding applications expand, manufacturers need smarter solutions.

To meet these demands, the FTCC Series Modular Laser Cladding Nozzle introduces an innovative split-type annular design that enhances flexibility, reduces costs, and improves process performance.

What Is a Modular Laser Cladding Nozzle?

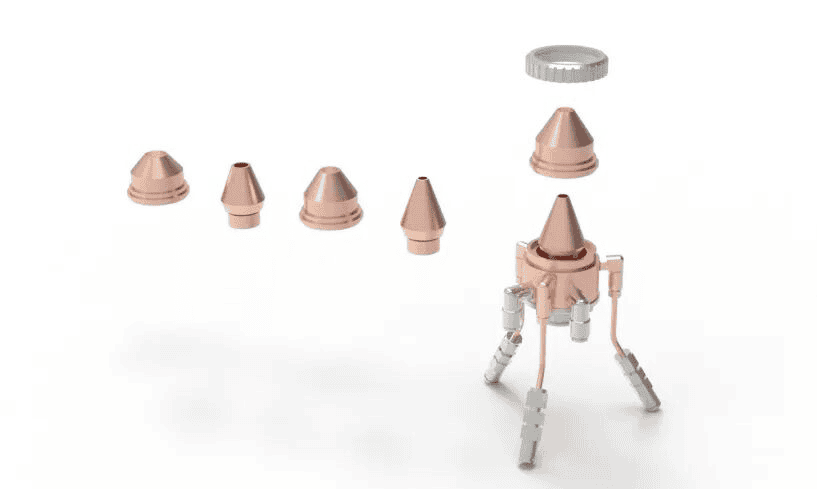

A modular laser cladding nozzle is a split-type annular nozzle system designed with independently replaceable inner and outer tubes. Unlike traditional one-piece designs, this structure allows selective component replacement instead of full nozzle disposal.

The FTCC Series adopts a threaded inner-outer tube connection and a modular configuration that supports multiple powder focus diameters and focal distances. This allows users to quickly adapt the nozzle for different cladding requirements.

FTCC Series Modular Laser Cladding Nozzle – Product Overview

Structural Features

Split inner and outer tube design

Threaded connection for easy assembly and disassembly

High-temperature resistant copper material

Optional electroplated wear-resistant coating

Optimized sealed water cooling channel

High-flow integrated water cooling system

Compared with traditional integrated nozzles, the cooling efficiency is significantly improved, ensuring stable continuous operation and preventing thermal deformation.

Technical Specifications

Parameter	Specification
Model	FTCC Series
Material	Copper
Laser Power	≤ 6kW
Weight	1 kg
Powder Flow Shape	Annular
Powder Focal Height	8–20 mm (optional)
Powder Spot Size	1–3 mm
Optical Aperture	4–8 mm
Powder Size	50–150 μm
Powder Flow Rate	1–45 g/min
Cooling Water Flow	≥ 2.0 L/min
Powder Distributor	1-to-3

Core Advantages of the FTCC Laser Cladding Nozzle

1. Modular Design for Easy Maintenance

The split inner and outer tubes can be quickly detached without replacing the entire laser cladding nozzle. This:

Reduces maintenance time

Cuts operational costs by over 50%

Minimizes production downtime

Simplifies polishing, inspection, and component replacement

2. Flexible Adaptation for Multiple Applications

With interchangeable inner and outer tubes, users can adjust:

Powder focus diameter (Φ1.0mm, Φ2mm, Φ3mm)

Powder focal distance (8mm, 10mm, 15mm)

This flexibility supports:

Fine precision repair

Large-area cladding

Composite material cladding

Multi-material processing

One nozzle, multiple applications.

3. Optimized Powder Flow and Stable Performance

The modular laser cladding nozzle provides:

Precise powder flow field control

Improved coating uniformity

Stronger metallurgical bonding

Reduced powder splashing

Stable powder feeding

High-precision module alignment ensures consistent cladding results.

4. Cost Efficiency and Long-Term ROI

Instead of discarding the entire nozzle due to localized wear, only the damaged component needs replacement.

Benefits include:

Lower consumable costs

Reduced inventory pressure

Compatibility with multiple laser systems

Enhanced production line flexibility

Process switching speed increases by up to 70%, improving overall manufacturing efficiency.

Applications of the Laser Cladding Nozzle

The FTCC modular laser cladding nozzle is widely used in:

✔ Laser Cladding & Remanufacturing

Component repair

Surface strengthening

Functional coating preparation

✔ Flexible Production Environments

Small batch manufacturing

Multi-material switching

Rapid parameter adjustment

✔ R&D and Process Development

Experimental validation

Parameter optimization

Powder flow research

✔ Advanced Materials Processing

High-temperature alloys

Composite materials

Specialized metal additive manufacturing

This nozzle supports high-precision, customizable industrial processing across diverse sectors.

Why Choose the FTCC Modular Laser Cladding Nozzle?

✅ Maintenance cost reduced by ≥50% – Replace only worn components
✅ 70% faster process switching – Quick tube replacement
✅ Higher long-term ROI – Multi-spec compatibility
✅ Advanced cooling performance – Stable continuous operation
✅ Custom engineering support – Tailored tube design & process guidance

The Future of Laser Cladding Technology

As the metal additive manufacturing industry moves toward higher precision, flexibility, and lower energy consumption, component innovation becomes critical.

The modular laser cladding nozzle represents a major step forward in solving traditional structural limitations. By combining modular design, optimized cooling systems, and flexible powder control, it enables manufacturers to achieve:

Higher processing accuracy

Greater operational flexibility

Reduced energy consumption

Lower overall production costs

The FTCC Series is not just a product—it is a strategic upgrade for modern laser cladding systems.
