Laser Cladding for Rod-Type Components: Revolutionizing Repair and Surface Strengthening in the Oil Industry
Industry Challenges and Technological Innovations
In the petroleum industry, drill rods are core tools for drilling operations, enduring high load impacts, corrosive environments, and intense frictional wear. These “triple threats” often lead to premature failure, directly impacting the safety and efficiency of drilling operations. Traditional repair technologies such as hardfacing and thermal spraying have limitations, including large heat-affected zones, weak bonding strength, and limited repair efficiency. These drawbacks make it difficult to meet the high-performance repair needs of modern petroleum industries, becoming a significant bottleneck to efficient oilfield production.
Core Advantages and Technological Innovations

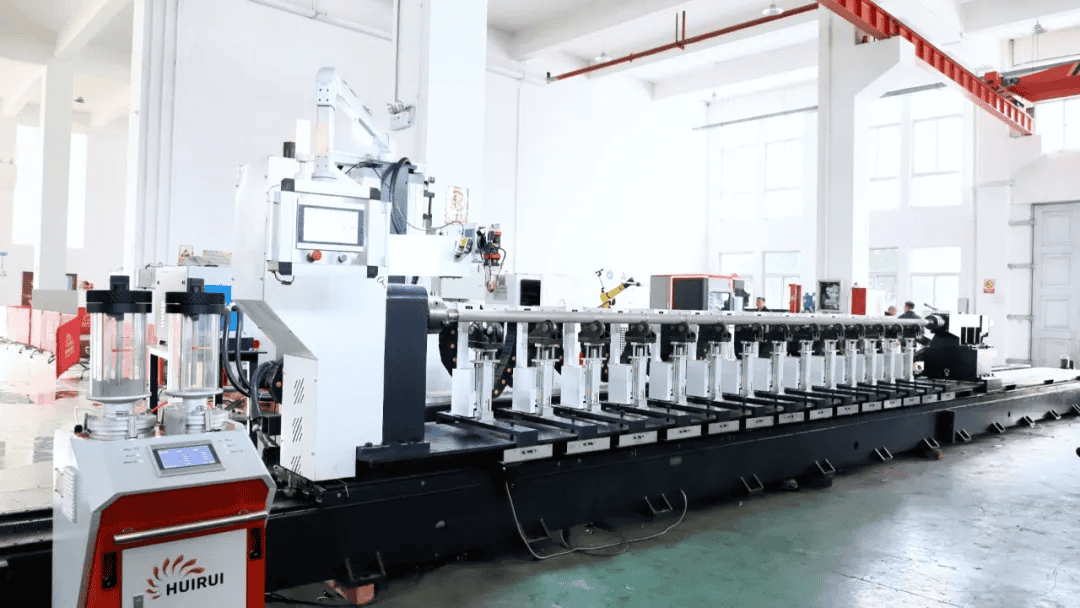

With years of technical expertise and practical experience in the oil industry, Huirui has customized laser cladding equipment specifically for rod-type components. The equipment’s core advantages are “high precision, high efficiency, and high adaptability,” achieved by integrating high-precision three-axis motion systems, high-frequency induction heating, and intelligent control systems. This enables efficient repair and surface strengthening of complex rod components like drill rods.
Key Advantages of the Laser Cladding Equipment:
Flexible Adaptation for Various Rod Component Sizes:
The equipment can handle rod-type components with lengths up to 10 meters and diameters ranging from Φ30-Φ150mm. It is equipped with a 24-meter sliding table and 14 electric cylinders. The dual-roller support system on the workpiece ensures flexible vertical movement and automatic locking through electric cylinders, adapting seamlessly to various rod component sizes, greatly enhancing equipment versatility.
Electromagnetic Induction Preheating to Minimize Cladding Defects:
Electromagnetic induction preheats the workpiece, and custom coils move along with the laser head. Infrared temperature sensors measure the workpiece’s temperature in real-time, ensuring precise control of the preheating temperature. When cladding materials such as Ni60, this method effectively prevents cracks, porosity, and other defects caused by excessive temperature gradients, ensuring high cladding quality.
Adjustable Core Parameters for Versatile Processing Needs:
The equipment uses an open software architecture that allows customers to independently adjust core parameters such as laser power, scanning speed, and powder feeding rate. This flexibility meets diverse processing needs and improves the equipment’s practical application.
Customized Equipment Solutions to Reduce Enterprise Costs:
By combining Huirui’s self-developed laser heads, nozzles, and powder feeders, we offer customized equipment solutions that significantly reduce enterprise costs and improve production efficiency.
Technical Specifications:
Equipment Name: Laser Cladding Equipment for Rod-Type Components
Model: UHS-iCoating®C6104
Repeat Positioning Accuracy: ±0.05mm
Laser Power: 6KW
Laser Head: Flat Laser Head
Laser Type: Fiber Laser
Wavelength Range: 900~1100nm
Central Wavelength: 1080±10nm
Number of Powder Containers: 1-4 (optional)
Cooling System: Dual-temperature, Dual-control
Cladding Nozzle: Annular Nozzle
Powder Feeding Rate: 0.4-300g/min
Powder Granularity: 20-300μm
Output Power Stability: ±3% (over 1 hour)
Three-Axis Motion System: 500/500/10500mm
Workpiece Diameter Range: Φ30-Φ150mm
Powder Delivery Distance: >20m

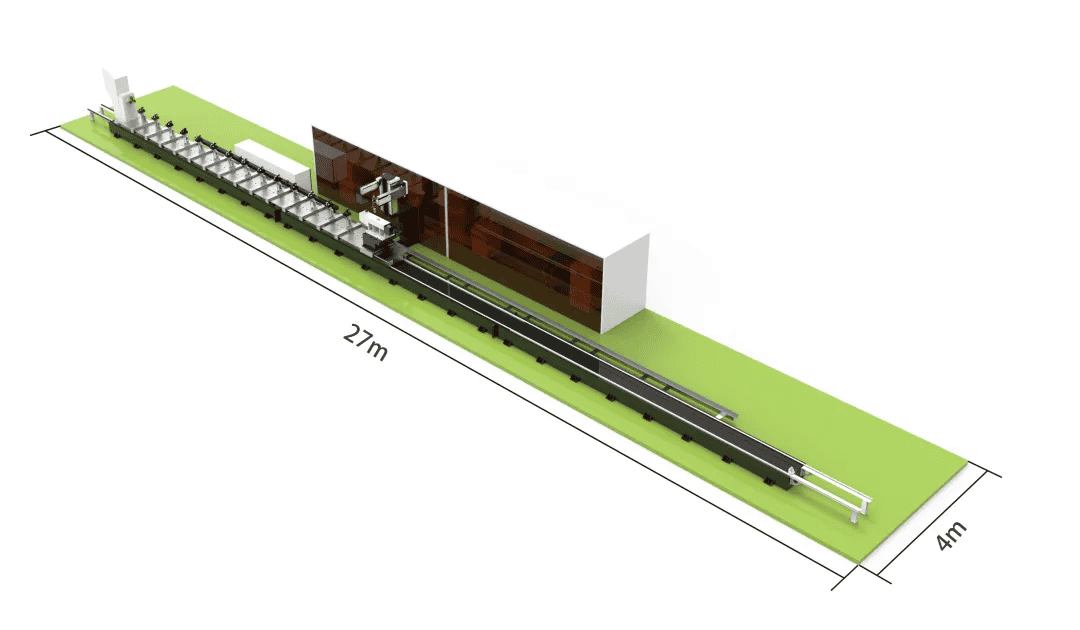

Equipment Dimensions: 27m × 4m (Length × Width)
Applications:

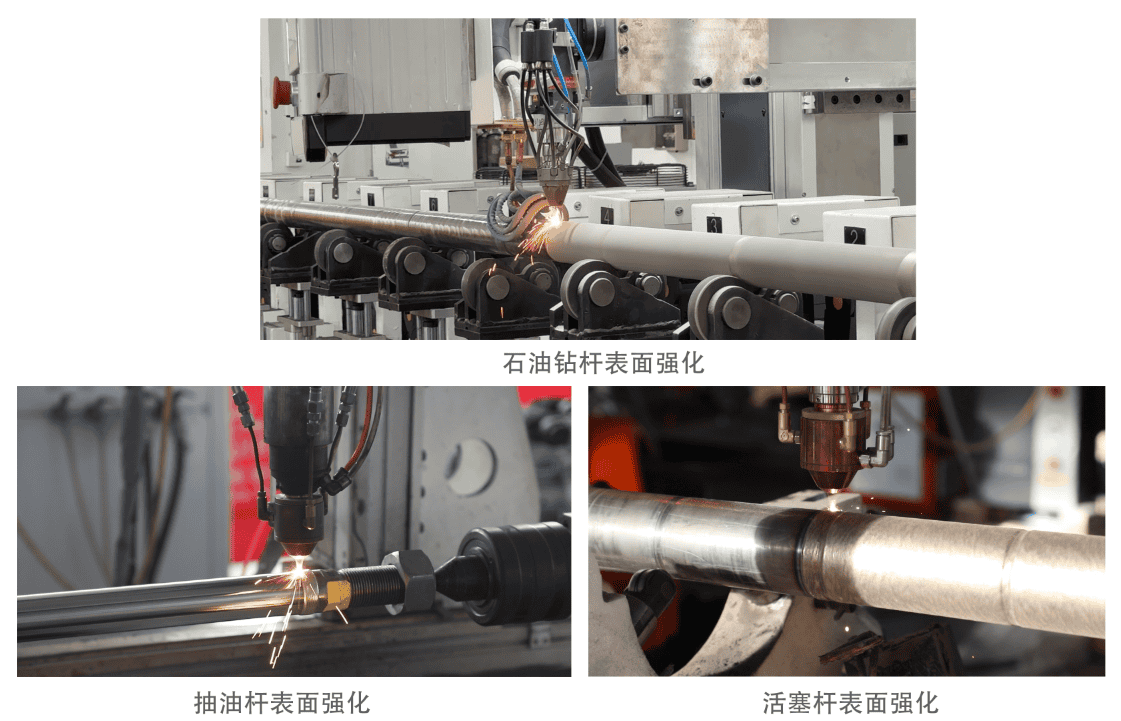

The equipment has been successfully used in the surface strengthening and repair of various rod-type components, including oil drilling rods, sucker rods, and piston rods, across global industries such as petroleum, petrochemical, construction machinery, and energy. Through customized solutions, we help enterprises reduce equipment costs and improve production efficiency while effectively addressing the limitations of traditional repair technologies.
Future Prospects:
This equipment, through technological innovation and customization, not only solves the challenges of repairing long and complex oilfield drill rods but also provides strong technical support for the high-quality development of the petroleum industry. It represents a revolutionary breakthrough in the repair of petroleum equipment.
Looking ahead, Huirui will continue to adhere to its commitment to technological innovation. Through continuous product iterations and solution optimizations, we will inject fresh vitality into laser cladding solutions. We are dedicated to delivering more efficient, stable, and intelligent solutions to help oil enterprises improve quality, reduce costs, and enhance market competitiveness, propelling the petroleum industry into a new era of high-quality development.
