Application of Laser Cladding Technology on Planet Carriers: Wear Resistance, Cost Reduction, and Green Manufacturing
Planet carriers are key load-bearing components in planetary gear transmission systems. As one of the core structures in planetary reducers, the planet carrier must maintain high rigidity, low weight, and excellent machining and assembly performance. Common designs include integral dual-side plate type, split dual-side plate type, and single-side plate type.
In coal mining machinery, the planet carrier is installed in the cutting arm of shearers. Working under heavy loads, high torque, and complex underground operating conditions, the planet carrier’s external splines often suffer severe unilateral extrusion and wear. Traditionally, this damage leads to scrapping the entire planet carrier, causing high replacement cost and material waste.

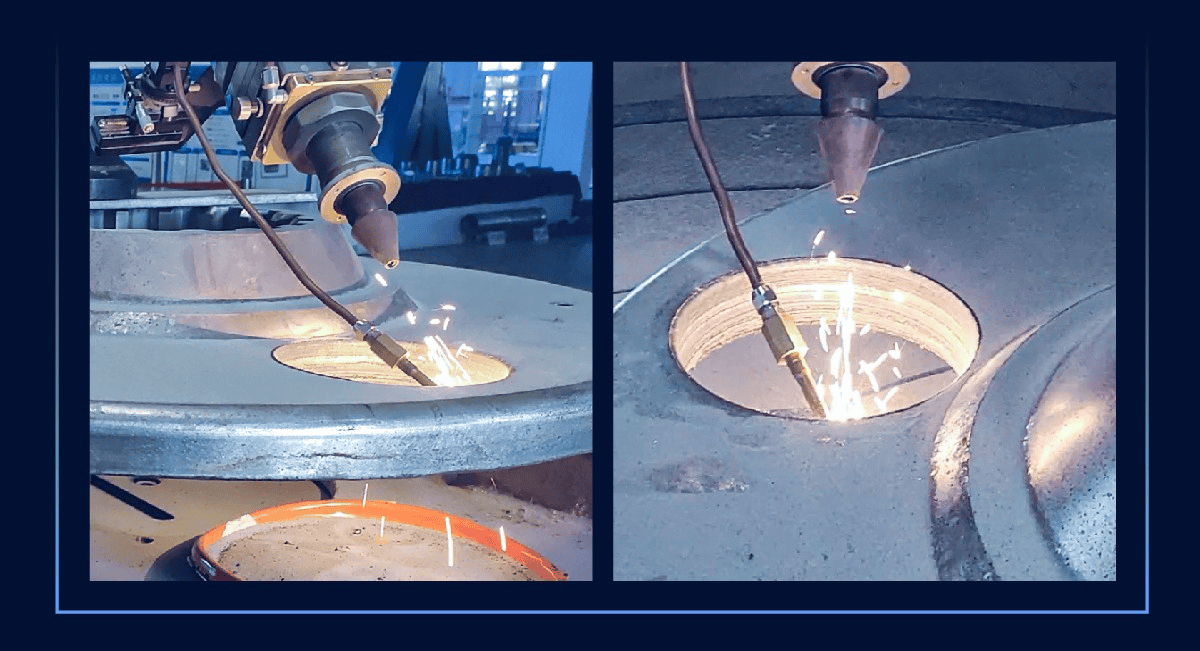

To solve these failures, Greenstone-Tech applies laser cladding technology for planet carrier surface reinforcement and spline repair, significantly enhancing durability and extending service life.
Why Laser Cladding Is Ideal for Planet Carrier Remanufacturing
Superior Metallurgical Bonding with High Hardness
Laser cladding melts high-performance alloy powder and the substrate simultaneously, forming a metallurgical bond with rapid solidification. This produces a dense, strong, and wear-resistant surface layer that dramatically improves:
Wear resistance
Fatigue resistance
Corrosion resistance
High-temperature oxidation resistance
This makes laser cladding a superior method compared to mechanical plating and thermal spraying.
Key Benefits of Laser Cladding on Planet Carriers
1. Extended Component Service Life
By applying alloy coating through laser cladding, the worn planetary spline teeth regain full functional geometry and surface strength. The upgraded cladding layer ensures continued reliable operation even under demanding coal-mining conditions.
2. Cost-Effective Manufacturing & Repair
Ultra-high-speed laser cladding operates at a deposition rate several orders faster than traditional laser cladding, with coating speeds reaching several meters per second. This high efficiency makes laser cladding cost-competitive with hard-chrome plating while offering superior performance and environmental benefits.
3. Stronger and Thicker Protective Layer
Hard-chrome plating typically forms a thin coating of only 0.2–0.6 mm and relies on mechanical adhesion, which risks peeling or delamination.
In contrast, laser cladding produces:
Coating thickness of 1.5 mm or more
Deep metallurgical bonding
No peeling or debonding risks
Higher hardness, toughness, and corrosion resistance
This ensures significantly improved load-bearing and impact-resistance capabilities.
4. Green & Sustainable Manufacturing Process
Compared with traditional hard-chrome plating, laser cladding:
Uses no harmful chemicals
Produces no wastewater or waste gas
Reduces energy consumption
Enhances material reuse and circular manufacturing
This positions laser cladding as a modern green-manufacturing technology aligned with global sustainability goals.
Laser Cladding for Planet Carriers: Technical Summary
| Performance Factor | Hard Chrome | Laser Cladding |
| Bonding Method | Mechanical | Metallurgical fusion |
| Typical Thickness | 0.2–0.6 mm | ≥1.5 mm |
| Wear Resistance | Moderate | Very high |
| Risk of Peeling | High | No peeling or delamination |
| Environmental Impact | Hazardous chemicals | Clean, no toxic waste |
| Cost Efficiency | Medium | Higher ROI through lifespan extension |
Industrial Value of Laser Cladding
By applying laser cladding to planet carriers, industries achieve:
Reuse of high-value mechanical components
Extended service time in harsh mining environments
Reduced maintenance downtime
Lower cost vs. new component replacement
Sustainable manufacturing strategy
Higher equipment reliability and production capacity
Through laser cladding, damaged planet carriers no longer need to be scrapped, significantly reducing waste and operational cost.
Conclusion
Laser cladding has become a critical technology for restoring and upgrading planet carriers in heavy-duty industrial equipment. Its advantages in durability, cost efficiency, metallurgical bonding, and environmental performance make it the preferred solution for modern mechanical remanufacturing.
As demand for high-reliability power-transmission components grows, laser cladding will continue to expand across mining machinery, wind power systems, construction equipment, and other high-load industrial fields.
