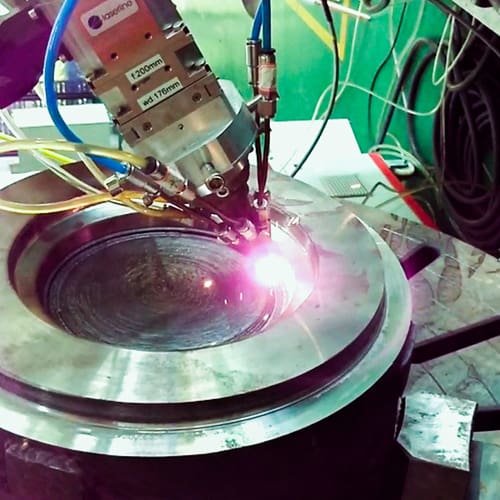

The lower die in the front section of the stamping die will withstand huge stamping pressure and high temperatures during the production process. After a certain period of use, the functional layer will have cracks and missing dimensions. Using the laser cladding process, the thickness of the functional layer can be increased, the hardness can be strengthened, and it has properties such as impact resistance, high-temperature resistance, and corrosion resistance.

Product name: Stamping die front end die

Material: 5CrMnMo

Basic situation: The product is a stamping die. The lower die is subjected to huge stamping pressure and high temperature during the production process. After a certain period of use, cracks, and size loss will occur in the functional layer. The working environment is 200-500C°.

Skills requirement:

• The cladding thickness is 10MM
• The functional layer after laser repair shall not be less than 3mm
• Hardness reaches above 45HRC
• It has the properties of impact resistance, high-temperature resistance, and corrosion resistance.
